FEATURES

• HS model

• Designed for high speed tractors, all fitted with high speed commercial axles on 420mm x 180mm brakes.

• STANDARD FEATURES

• Monocoque tapered body with 4mm floor and 3mm sides

• Side-loading silage sides with deflector boards

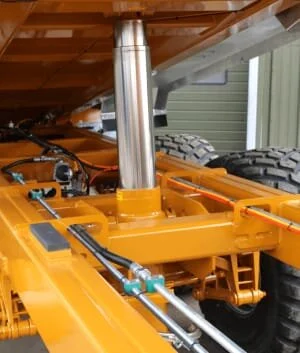

• 55 degree tipping body with anti-corrosive tipping rams

• Hydraulic tailgate with rubber seal, auto lock and hydraulic safety check valve

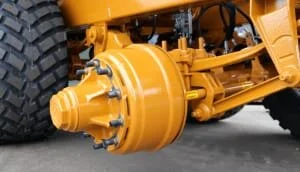

• 2.0m axle track, 10 stud commercial axles with 15x22.5 super single tyres

• Hydraulic or air brakes with load sensing valves

• LED road lights and side markers with indication ballast control

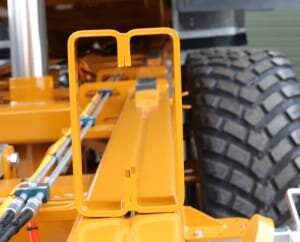

• Height adjustable sprung drawbar and heavy-duty mono leaf springs using radius arms with replaceable bushes

• Inspection ladder

• Body prop

• Chassis shock absorption pads

• OPTIONAL EXTRAS

• 6mm floor and 4mm sides

• Dual brakes - Hydraulic and air brakes with load sensing valve

• Range of flotation tyres to suit your needs

• ABS on air brakes

• Auto slack adjusters

• Work lights complete with pressure switch from tip circuit

• Rear steering axle with hydraulic lock-out or active steering axle

• Headboard mounted hydraulic roll over sheeting system

• Load cell weighing equipment c/w trailer mounted display, 4 load cells

• Hydraulic pressure load electric indicator kit

• Hydraulic folding auger

• 8 bolt flange bolt-on swivel eye or K80 spoon

• 8 bolt flange bolt-on 50mm eye

• Weld on swivel eye

• Rear towing out points

• Rear drawbar c/w brakes and electrics
